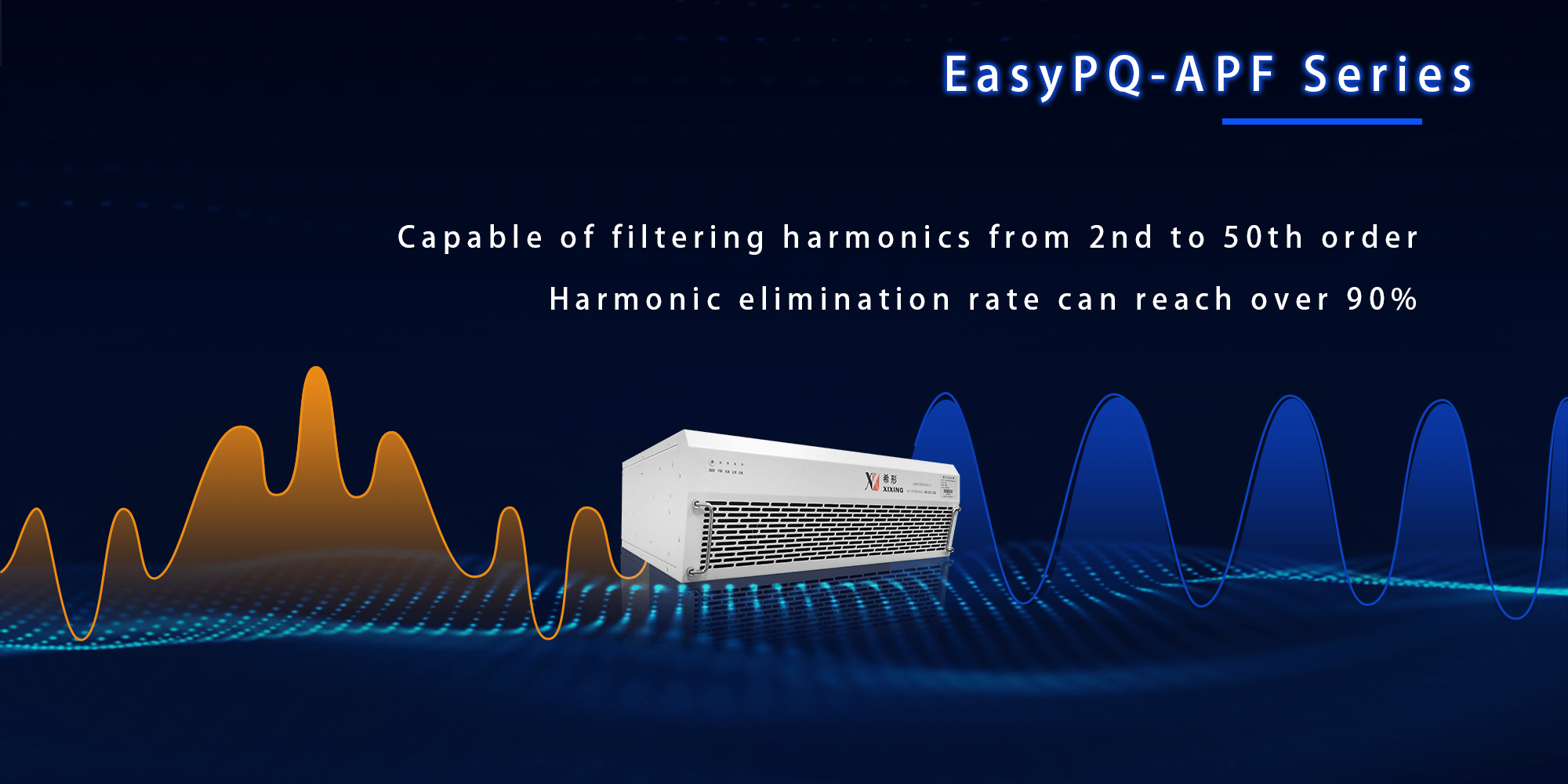

The EasyPQ Active Power Filter (APF) offers a wide filtering spectrum and exhibits robust filtering performance.

The EasyPQ Active Power Filter (APF) can eliminate harmonics from the 2nd to 50th order, ensuring a current THDi of ≤5%，harmonic reduction rate of at least 90%.It allows for the customization of harmonic amplitudes, phases, and compensation rates based on customer needs.

The EasyPQ Active Power Filter (APF) offers robust comprehensive mitigation capabilities and is highly reliable.

■ The system offers four compensation modes: harmonic reduction, reactive compensation, three-phase current imbalance, and fixed reactive support.

■ With sufficient device capacity, harmonics, reactive power, and three-phase current imbalance can be compensated simultaneously.

■ Modules are paralleled for mutual backups; a faulty module won't affect system operation.

■ Low failure rate, easy maintenance, and long service life.

Visualized and digital monitoring

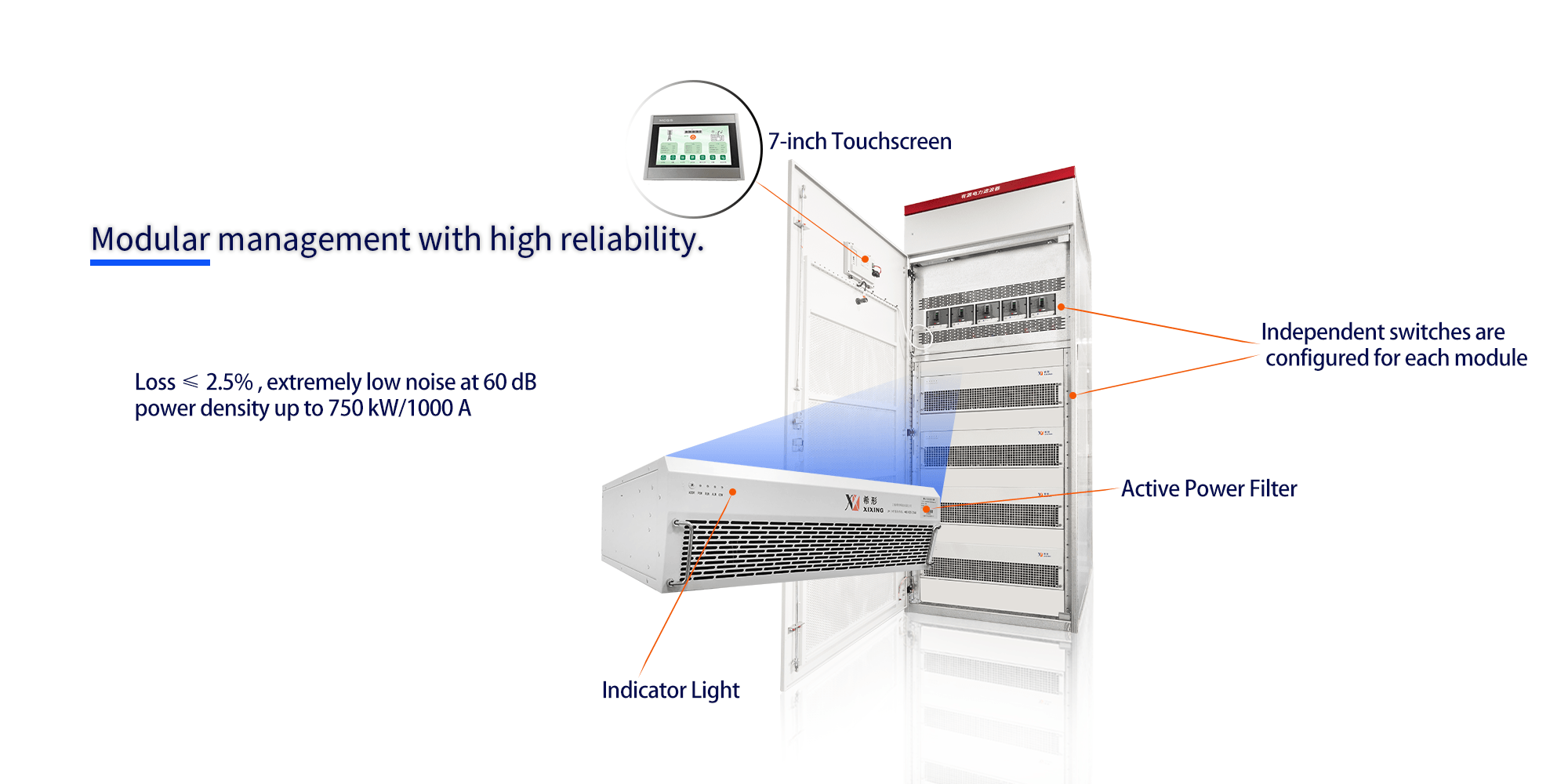

It can be equipped with a 7-inch centralized monitoring touch screen, featuring a user-friendly interface that is easy to operate, and it displays real-time current and voltage waveforms, harmonic status, and alarm conditions.

Centralized monitoring of multiple modules on one screen, with each module providing balanced output.

Technical Specifications
