Bidirectional compensation with high compensation precision

■ It compensates for both inductive and capacitive reactive power

■ Achieve 0.1kVar stepless compensation

■ In a distribution system with a low load factor, the power factor can be sustained at unity

■ The system offers fixed reactive compensation mode

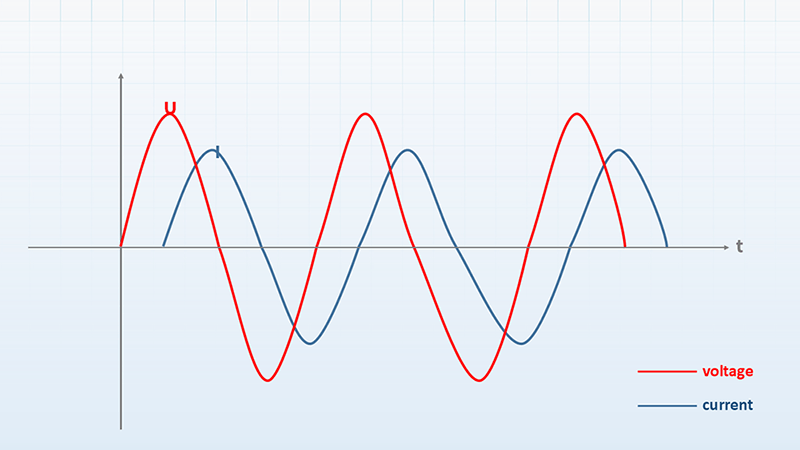

Inductive Reactive Power Waveform Diagram

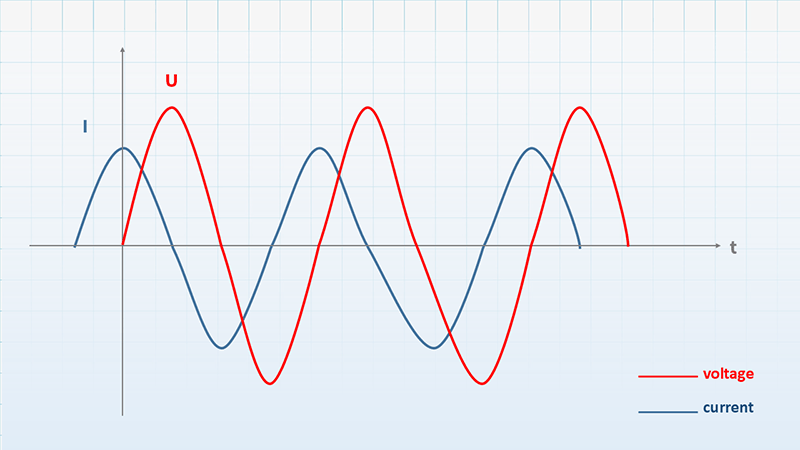

Capacitive Reactive Power Waveform Diagram

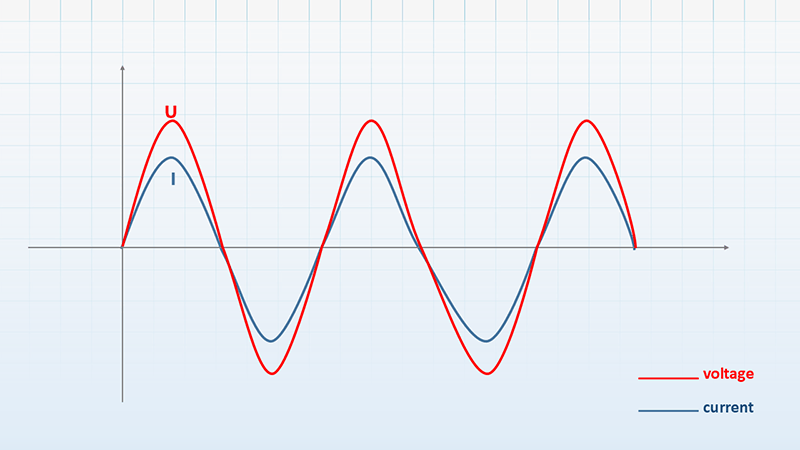

Post-treatment Waveform Diagram

Buick response

■ Total response time < 10ms

The total response process involves: load current detection, reactive current calculation, and SVG real-time output of compensating current.

■ Transient response time is 12 μs

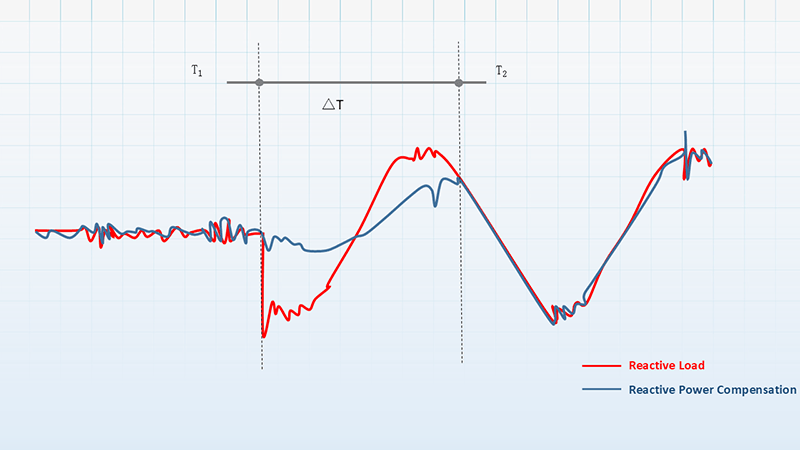

Transient response time is 12 μs

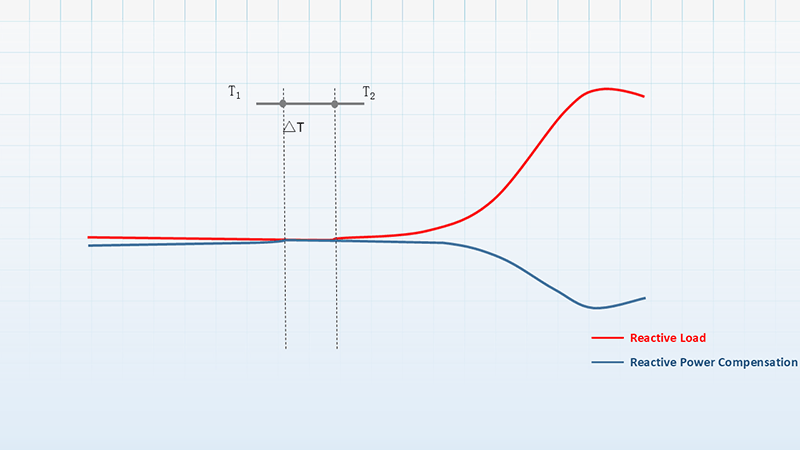

Total response time < 10ms

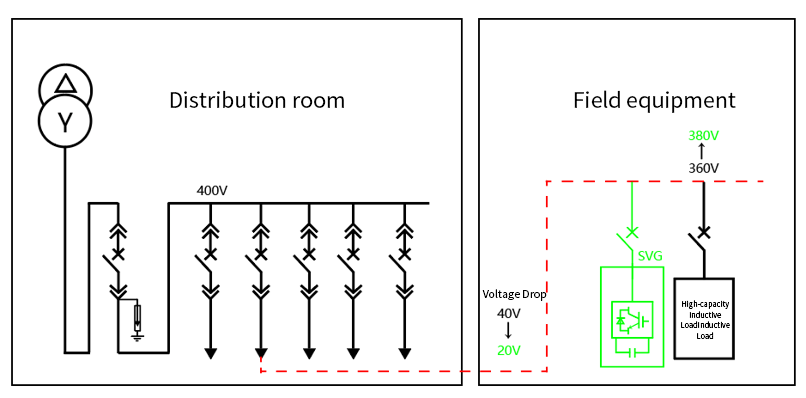

Enhance the voltage stability of the power supply system

Under conditions of high load, long transmission lines, and lack of reactive power support, voltage at the end of the line tends to be low, potentially leading to voltage collapse. EasyPQ-SVG can rapidly adjust reactive power, reduce line losses, stabilize voltage on the load side, and thereby enhance the voltage stability of the power supply system.

Technical Specifications

Operating voltage	380V（±20%）
Operating frequency	50Hz/60Hz（±10%）
Harmonic compensation	2nd to 13th order
harmonic filter rate	Within the capacity of the device≥90%
Reactive power compensation	-1~+1（within the equipment's capacity range）
Three-phase unbalance compensation	100% complete compensation of unbalance
Communication interface	RS485
Total response time	≤10ms
Active power loss	≤2.5%
Electrical noise	≤60dB
Operating temperature	-10℃~+50℃
Degree of protection	Module IP20+ Electronic layer IP42（Customizable IP54）
Pollution level	Level 2（Customizable Leve 3）
