Advantage

■ The device has a wide voltage range and can operate normally within the 380V to 920V range.

■ Enhanced voltage capability, reaching up to 920V at full load

■ The system offers three compensation modes: harmonic reduction, reactive compensation, and fixed reactive support.

■ Efficiently suppresses even-order harmonics

■ Designed to filter harmonics from the 2nd to 50th order, with a guaranteed current THDi of ≤5%.

■ The maximum capacity of a single cabinet can reach 500A/kVar.

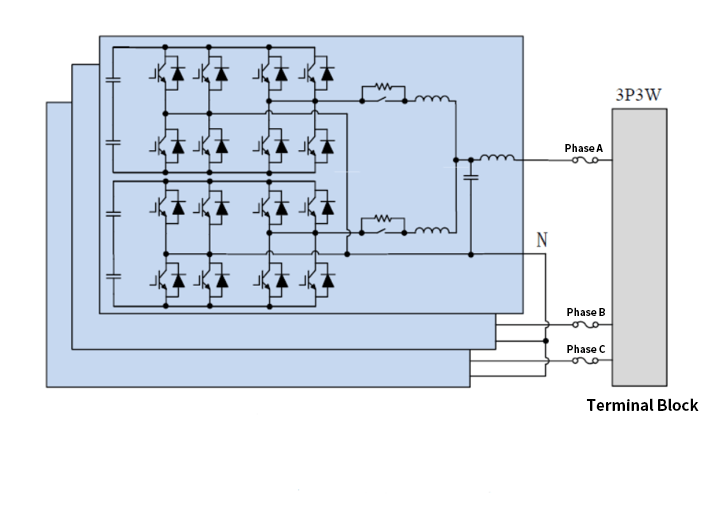

Topological Structure

Using an H-bridge topology allows for the efficient filtering of even-order harmonics.

Operating voltage	380V-920V（±20%）
Operating frequency	50Hz/60Hz（±10%）
Harmonic compensation	2nd to 13th order（SVG）/ 2nd to 50th order（APF）
harmonic filter rate	Within the capacity of the device≥90%
Reactive power compensation	-1~+1（within the equipment's capacity range）
Communication interface	RS485
Total response time	≤10ms
Active power loss	≤2.5%
Electrical noise	≤60dB
Operating temperature	-10℃~+50℃
Degree of protection	Module IP20+ Electronic layer IP42（Customizable IP54）
Pollution level	Level 2（Customizable Leve 3）
